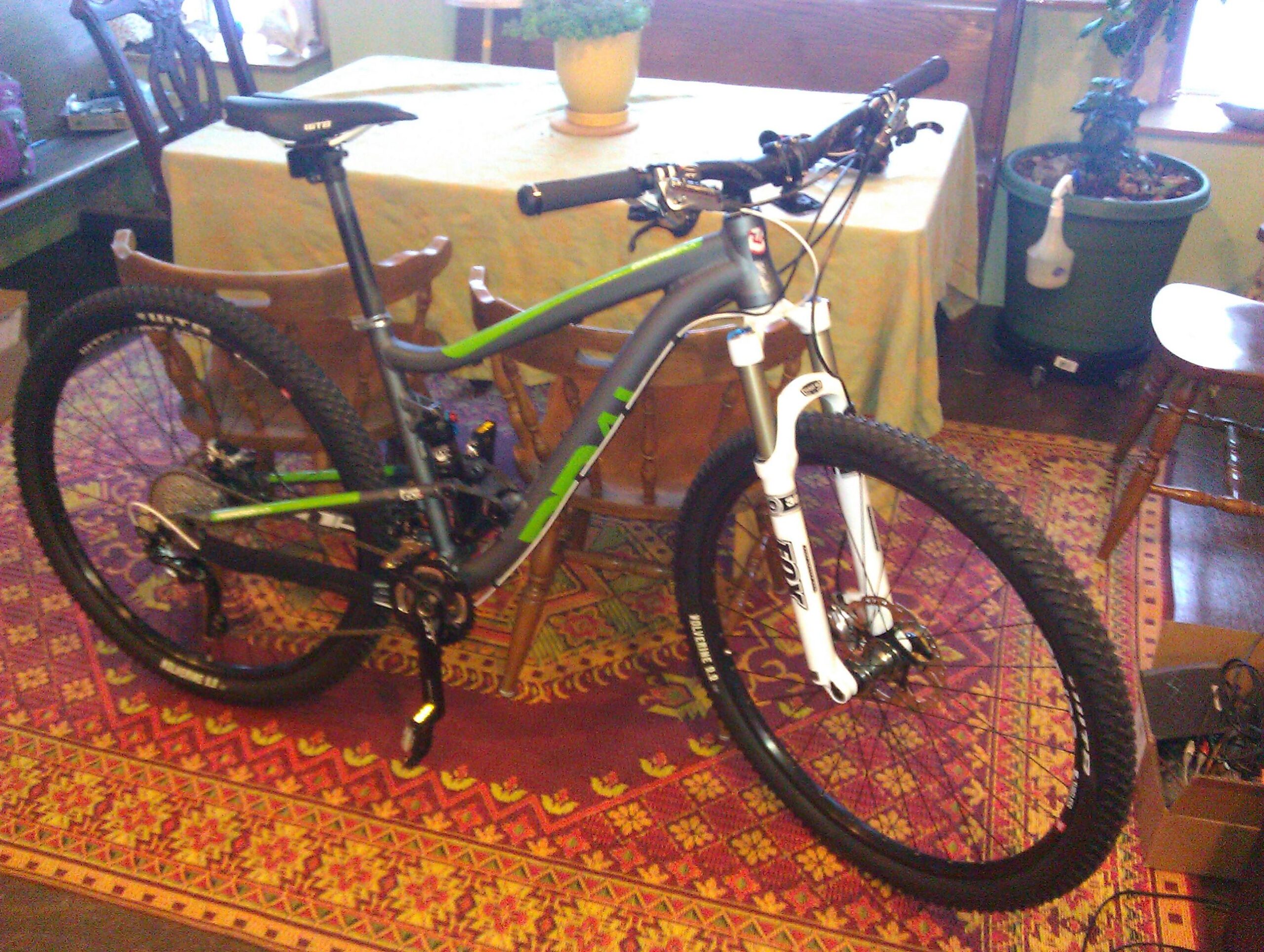

Diamondback Sortie 3 29er: A mountain bike with a gray and green frame is positioned in a cozy room, surrounded by wooden furniture and a colorful patterned rug. The bike features a white front fork, thick tires, and a seat that appears adjustable. In the background, there is a dining table covered with a cloth and potted plants.
See all photos (2)
×
User
Today

  |   Rate it:

Tags:
Where to buy Diamondback Sortie 3 29er    SEE ALL

Loading...
Singletracks may receive compensation for purchases made through affiliate links shown above.

Product info

****   Add a review
0 Singletracks members own this.
MSRP: $4,000
#297 out of 518 29er bikes
Brand: Diamondback
The Sortie 29er was inspired by our beloved Sortie 26" platform. Our goal simple: retain ride characteristics of the Sortie trail platform while adding the benefits of a larger diameter wheel. Not a simple task by any means, but what we've come up with is a bike that's being hailed as one of the best 29 inch bikes on the market. We'll take that!

Diamondback's Design Philosophy is a no-nonsense approach to building quality bicycles. We want our bike designs to be straightforward: their hardware accessible and their suspension simple.



Diamondback's Sortie 29 3 brings affordability to a quality build. Our 6061-T6 Weapons Grade Aluminum frame features a hydroformed top tube, a butted and formed downtube, a seatstay bridge, tapered headtube, a 142×12mm E-Thru Axle drop out and Diamondbacks legendary Knuckle Box Suspension technology.

The Knuckle Box, or bell crank, is the core of our single-pivot four-bar suspension platform. Optimally placed pivots equate to a low leverage ratio, and ultimately to superior pedaling efficiency and small-bump compliance. This also allows the shock to work more efficiently and reduces pedal induced motion. It also reduces overall load on the system which will lead to improved shock and bearing life.

Placing the Knuckle Box low within the frame, situates the greatest weight of the bike closer to the bottom bracket, which lowers the bike's center of gravity and allows it to better track and corner.

Wheel-rate is also one of the most significant aspects of a suspension system. Wheel-rate is the effective spring-rate when measured at the wheel. A benefit of our four-bar linkage is increased control over the wheel-rate. Obtaining the spring-rate curves in shocks from Fox is necessary to allowing us to determine the wheel-rate. Working closely with Fox, we're able to optimize the wheel-rate to be linear-to-slightly progressive. This results in superb small-bump compliance, more perceived travel and excellent bottom-out protection. For our Sortie29 series, we're proud to run a 4.5" Fox Float CTD Air Shock with Adaptive Logic and Boost Valve Technologies. The "LV" 190×51mm air shock with rebound adjust and all new 3 position "adaptive logic" Propedal Platform keeps the rear riding plush without sacrifice on the pedal uphill. Fox's patented Boost Valve technology provides a feeling of endless travel like that of a downhill rig, but with XC pedaling efficiency. Climb, Trail, and Descend: this shock is ready for anything, instantly.



The Sortie 29 3 offers quality componentry in an economical package... starting with the Fox 32 Float CTD 29 RL 120mm travel air fork. This fork comes with an open bath cartridge, rebound, lever actuated lockout, alloy tapered 1.5 steerer, 32mm Easton aluminum stanchions, magnesium lowers, and a beefy QR15mm thru axle. The lockout function comes in handy for long sustained climbing. And at a hair under 4lbs, this little beast helps to keep weight down.

Complementing Fox's amazing suspension suite on the Sortie29 3, is a stellar Shimano package featuring a Shimano XT Dyna-Sys 10spd Crankset with an outboard bearing bottom bracket (24/38t). Shimano XT 10spd Rapidfire shifters, front derailleur and SGS Shadow Plus 10spd rear derailleur. We've also included a Shimano XT 10spd Cassette (11-36t), an HG74 10spd chain, 32h WTB Laser Disc Trail w/single eyelets Doublewall rims laced to sealed cartridge bearing hubs (15mm front/142×12 rear). A set of Shimano XT Hydraulic disc brakes with 180mm front / 160mm rear rotors provides ample stopping power. An Easton EA50 cockpit, seat post and WTB VIGO comp saddle provide a comfortable and stable riding experience.

Knuckle Box Frame Characteristics:

Tapered Head tube - Today's longer travel forks generate more stress on the head tube. Add in today's more aggressive rider and the need for additional strength in that region becomes imperative. Thus the 2012 Sortie 29er frame is equipped with a tapered head tube for enhanced steering and extra strength.

142×12 mm Thru Axle - Employing Shimano's new 142×12 mm E-Thru design makes for a stiffer and stronger rear-end on the bike.

Single-Sided Hardware - Single-sided oversized heat treated hardware is used for the three main pivot points allows for easy access to your 14 high-quality Enduro Max bearings simply with standard tools. No more removing the crankset to tighten or service your pivots.

Partnership w/ Fox - By providing suspension kinematics early in our design process, Fox is able to custom tune their shock to work precisely with our frames, improving performance.

Knucklebox Technology

LOW AND TIGHT - The Knuckle Box platform was designed specifically to be low and tight:

Low center of gravity: All suspension parts are positioned farther down on the frame for a stable and balanced ride.

Low leverage suspension design: Lower air pressure results in longer shock life, less frame loading and better pedaling.

Tight, compact linkage system of the Knuckle Box bell crank isolates and cradles the rear shock.

Tight and large anodized aluminum hardware, matched with Force-Rated Enduro Max Bearings: Withstands higher loads and better handles oscillating motion.

The Sortie 29 3 comes in 4 sizes: SM (15.5"), MD (17"), LG (19"), XL (21") and is grey/green.

If you are searching for the ideal full suspension 29er capable of sustained trail climbs or descents, super D's, Enduro's or all day in the saddle XC rides... you just found your bike my friend.



BIKE SPECS

Sizes 15.5" Small 17" Medium 19" Large 21" XLarge

Frame Sortie 29r Trail 4.5" 6061-T6 Weapons Grade Aluminum w/ Taper Head Tube / Hydroformed Top Tube, Butted / Formed Down Tube / Seatstays, Under Arch Seatstay bridge, Knuckle Box Technology, 142x12mm E-Thru Axle Drop out

Fork Fox 32 Float CTD F.I.T. 29 Air, 120mm travel, "FIT" cartridge, with ext. compression / rebound / lock out, butted Alloy Tapered 1.5 steerer, 32mm Easton aluminum stanchions, magnesium lowers, QR15mm thru axle

Rear Shock Fox Float CTD adjust, Boost Valve "LV" eyelet 190x51mm Air w/ rebound adj, Climb, Trail, Descend lever, 3 levels of pedal platform

Cranks Shimano FCM780 XT, Dyna-Sys 10spd Crankset w/Shimano outboard bearing BB w/ replacable rings 24/38t

Bottom Bracket Shimano outboard bearing BB

F. Derailleur Shimano XT High Direct Mount 3x10

R. Derailleur Shimano XT SGS Shawdow Plus, 10spd

Shifter Shimano XT 10spd Rapidfire

Brake Levers Shimano XT, w/tool-free reach adj. free stroke adj.

Brakes Shimano XT Hydraulic Disc w/ XT ICE 6-bolt, 180mm frt / 160mm rear Rotors

Cassette Shimano M771 XT 10spd Cassette (11-36t)

Rims 32h WTB Laser Disc Trail w/single eyelets

Tires WTB Wolverine 2.2 Comp, Folding

Pedals Shimano 520 Clipless

Handlebar Easton EA70 LowRise 31.8mm

Stem Easton EA70 31.8mm

Seatpost Easton EA70 Double bolt clamp 31.6mm

Seat WTB VIGO comp

Headset FSA No57 Taper 1.5 / 1 1/8" Alloy cups, Sealed Cartridge

Colors Grey

Chain Shimano HG74 10spd

Hubset (F) 32h 15QR Alloy Sealed Bearing Disc w/ 15mm Thru Axle (R) 32h 142x12 sealed cartridge bearing, 12mm thru axle, Cassette w/ CNC Disc mount, w/ Shimano E-Thru QR Axle

Spokes Black 14g Stainless Steel

Grips DB4L "Lock on" 135mm Kraton

Extras Owner's manual, Chainstay Protector, Clear Coat, H20 bottle mounts

Note Specifications Subject to Change

GEOMETRY

Size 15.5" Small 17" Medium 19" Large 21" XLarge

Seat Tube Length ** 15.5" 17.0" 19.0" 21.0"

Standover Height 29.0" 30.0" 31.0" 32.5"

Top Tube Length * 22.5" 23.5" 24.0" 25.0"

Head Tube Length 100.0mm 110.0mm 130.0mm 140.0mm

Head Angle 69.5° 69.5° 69.5° 69.5°

Seat Angle 73.0° 73.0° 73.0° 73.0°

Wheel Base 1107.0mm 1133.0mm 1149.0mm 1163.0mm

Chain Stay Length 455.0mm 455.0mm 455.0mm 455.0mm

Fork Offset 44.0mm 44.0mm 44.0mm 44.0mm

BB Height 330.0mm 330.0mm 330.0mm 330.0mm

Stem Length 90.0mm 90.0mm 100.0mm 110.0mm

Handlebar Width 685.0mm 685.0mm 685.0mm 685.0mm

Crank Length 170.0mm 175.0mm 175.0mm 175.0mm

Seat Post Length 300.0mm 300.0mm 300.0mm 300.0mm

* Measured Horizontally

** Measured from Center
