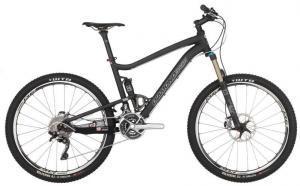

Diamondback Sortie Black photo
×
User
Today

  |   Rate it:

Tags:
Where to buy Diamondback Sortie Black    SEE ALL

Loading...
Singletracks may receive compensation for purchases made through affiliate links shown above.

Product info

*****   Add a review
0 Singletracks members own this.
#216 out of 418 Full suspension bikes
Brand: Diamondback
Frame: Sortie Trail 5" 6061-T6 Weapons Grade Aluminum w/ Hydroformed Top Tube, Butted / Formed Down Tube / Seatstays, Under Arch Seatstay bridge, Knuckle Box Technology

Fork: Fox 32 Float RLC FIT Air, 130mm travel, New "FIT" Cartridge, with ext. compression / rebound / lock out knobs butted Alloy steerer, 32mm Easton aluminum stanchions, magnesium lowers, w/15mm thru axle

Rear Shock: Fox Float RP23 "XV" extra volume 200x57mm Air

Cranks: Shimano XTR Hollotech Dyna-Sys 10spd Crankset w/ XTR BB, 24/32/42t

Bottom Bracket: XTR

F. Derailleur: Shimano XTR dual pull, down swing, 34.9

R. Derailleur: Shimano XTR SGS 10spd

Shifter: Shimano XTR 10spd Rapidfire

Brake Levers: Shimano XTR, w/tool-free reach adj. free stroke adj.

Brakes: Shimano XTR Hydraulic Disc w/cooling fins, w/ 180mm frt / 160mm rear Rotors

Gear: Shimano HG980 XTR 10spd Cassette (11-36t)

Rims: Shimano XTR 24H Clincher, tubeless

Tires: WTB Wolverine 2.1 UST, Folding

Pedals: Shimano XTR clipless

Handlebar: Easton EC-70 XC CNT LoRise Carbon 31.8mm

Stem: Easton EA90 31.8mm

Seatpost: Easton EC90 CARBON Double bolt clamp 31.6mm

Seat: WTB DEVO Carbon

Headset: FSA ORBIT Z deep alloy cups, Zerostack sealed cartridge bearing 1 1/8"

Colors: Anodized Black

Chain: Shimano HG980 XTR 10spd

Hubset: (F) Shimano XTR 24H 15mm E-thru w/centerlock disc mount (R) Shimano XTR 24H cassette, QR, w/centerlock disc mount

Spokes: Shimano XTR Stainless

Grips: DB 130mm D2 Kraton

Extras: Knuckle Box Shock Pump, Sag Gauge, DB Key Chain, Owner's manual / Sortie owner's manual cover, Chainstay Protector, Clear Coat, H20 bottle mounts
